BOJACK 45+7.5 uF 45/7.5 MFD ±6% 370/440 V AC CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight Cool or Heat Pump Air Conditioner
Brand: BOJACK
Features:
- BOJACK 45+7.5uF ±6% 370V/440V CBB65 Dual run circular start capacitor

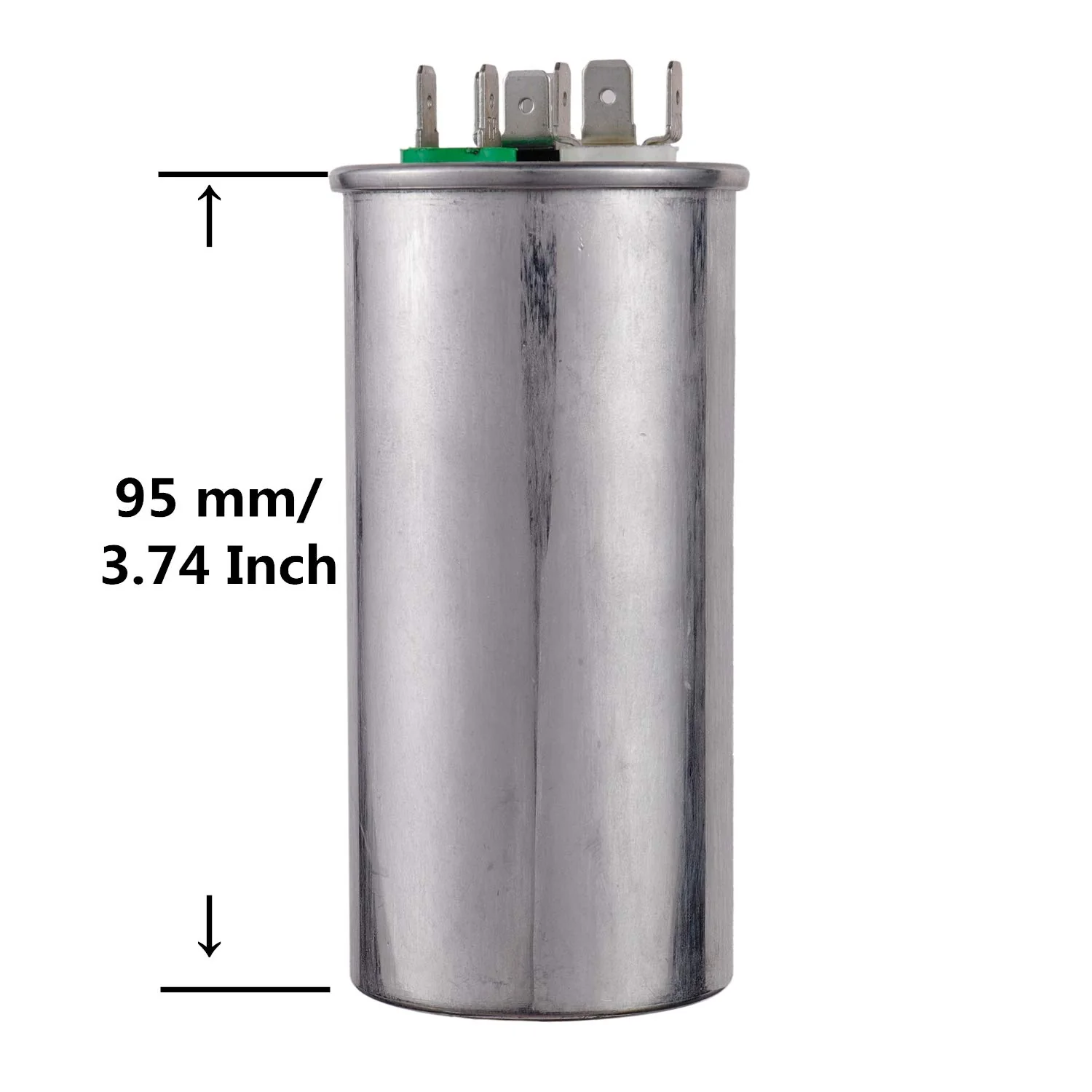

- Capacitor dimension: Diameter 2.56 inch,Height 3.74 inch
- Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
- Safety rated: 10,000 AFC
- Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
model number: BJ-CAP-4575
Part Number: BJ-CAP-4575
Details: BOJACK Dual run circular start capacitor
Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 45+7.5uf
Tolerance: ±6%
Rated voltage: 370V/440 V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.
EAN: 0717351789408
Package Dimensions: 4.5 x 2.8 x 2.7 inches
Original: $49.78
-65%$49.78
$17.42Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Brand: BOJACK
Features:
- BOJACK 45+7.5uF ±6% 370V/440V CBB65 Dual run circular start capacitor
- Capacitor dimension: Diameter 2.56 inch,Height 3.74 inch
- Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
- Safety rated: 10,000 AFC
- Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
model number: BJ-CAP-4575
Part Number: BJ-CAP-4575
Details: BOJACK Dual run circular start capacitor
Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 45+7.5uf
Tolerance: ±6%
Rated voltage: 370V/440 V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.
EAN: 0717351789408
Package Dimensions: 4.5 x 2.8 x 2.7 inches
